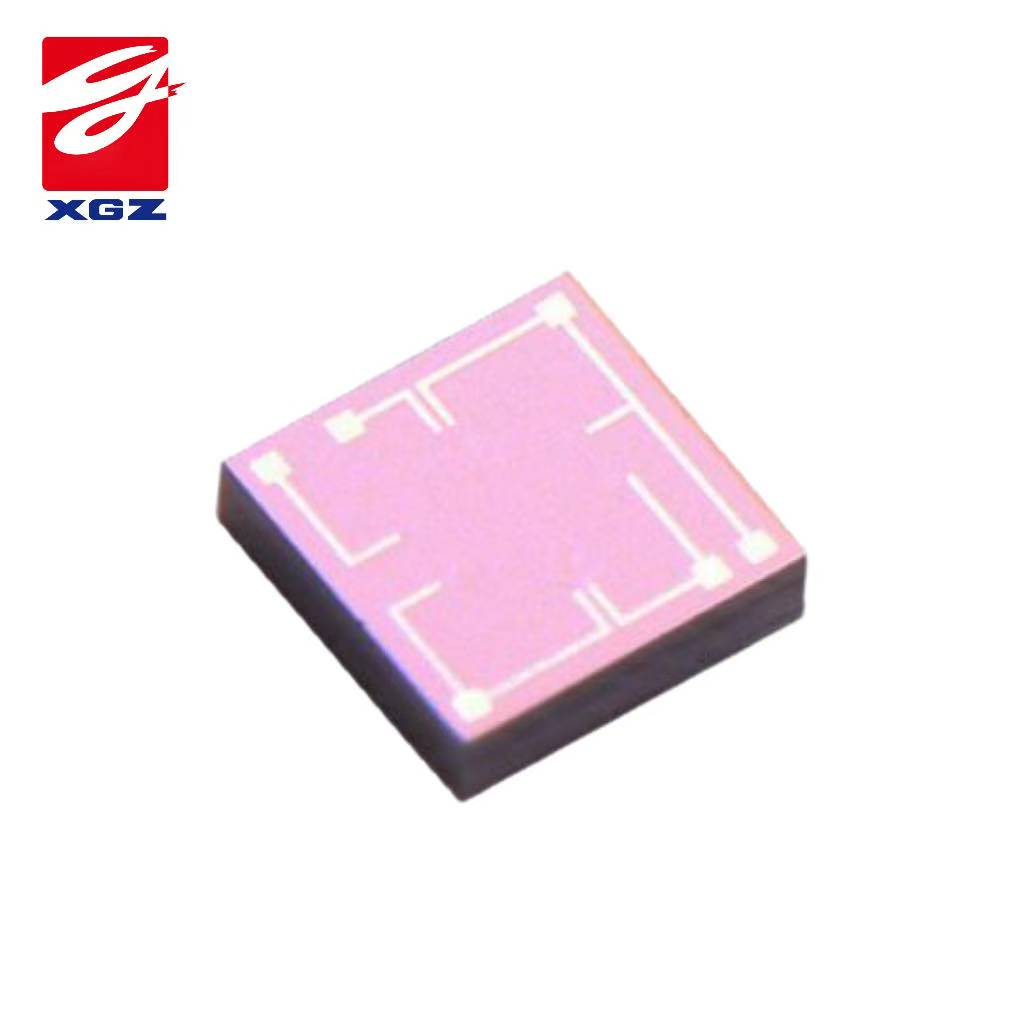

GDP1704: Silicon Piezoresistive Sensor (Gauge Type）
| Sensor Attribute | Attribute Value |
| Product Category | Pressure Sensor Die |
| Product Series | GDP1704 |
| Chip Type | Silicon Piezoresistive Sensor(Gauge Type) |
| Pressure Range | 40kPa |
| Output Type | Analog mV output |
| Offset Output Value | -10～10mV |
| FS Output Value | 50～90mV |
| Bridge Resistance | -4 to 6KΩ |
| Power Supply | ≤15V or ≤3mA |
| Operating Temperature | -40 to 125°C |
| Die Size(L*W*H) | 1.7×1.7×0.38mm(including Scribe Line 100μm) |
| QTY/Wafer | 5000pcs/6”Wafer |
