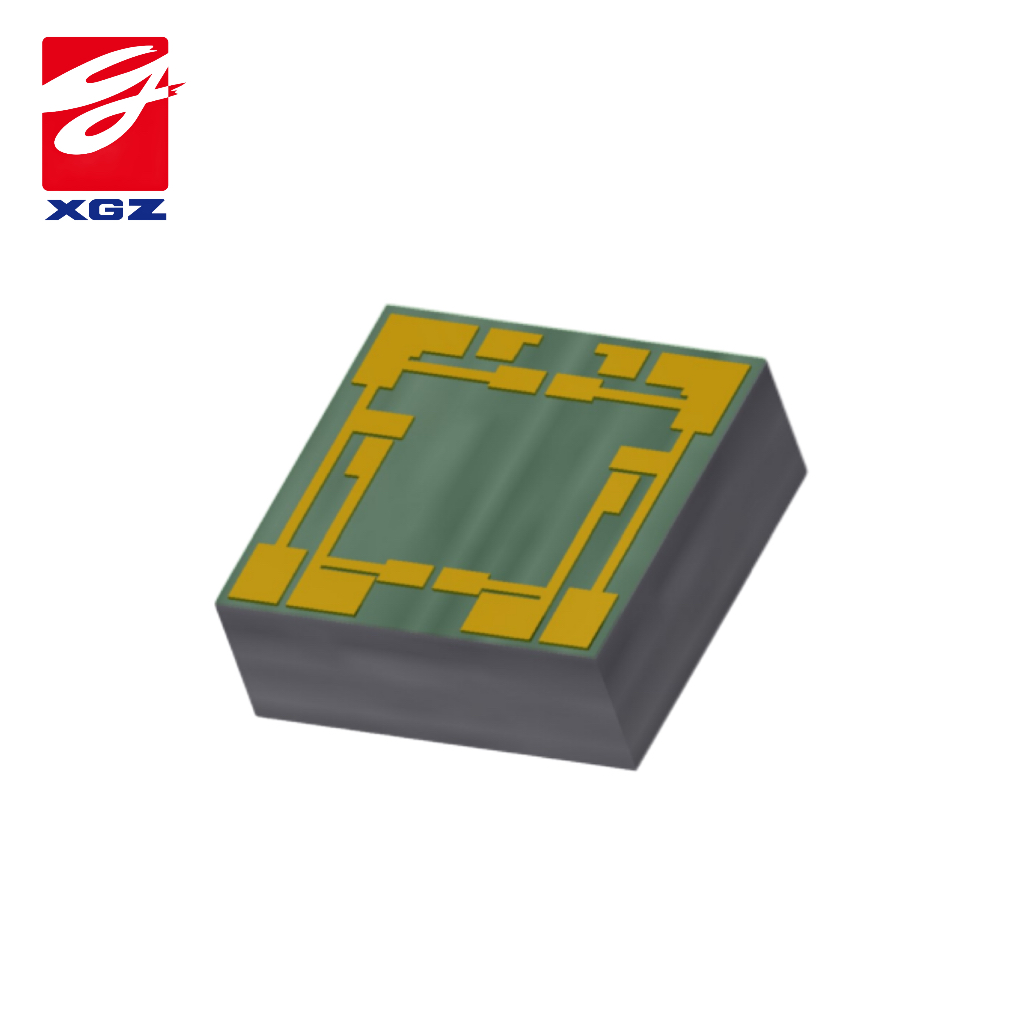

GDP1004AQ: Silicon Piezoresistive Sensor (Absolute Type）
| Sensor Attribute | Attribute Value |
| Product Category | Pressure Sensor Die(AEC-Q103 qualified) |
| Product Series | GDP1004AQ(Automotive Grade) |
| Chip Type | Silicon Piezoresistive Sensor(Absolute Type) |
| Pressure Range | 350kPa |
| Output Type | Analog mV output |
| Offset Output Value | -20～20mV |
| FS Output Value | 50～120mV |
| Bridge Resistance | -4 to 6KΩ |
| Power Supply | ≤15V or ≤3mA |
| Operating Temperature | -45 to 150°C |
| Die Size(L*W*H) | 1.0×1.0x0.4mm(including Scribe Line 80μm) |
| QTY/Wafer | 26000pcs/8”Wafer |
