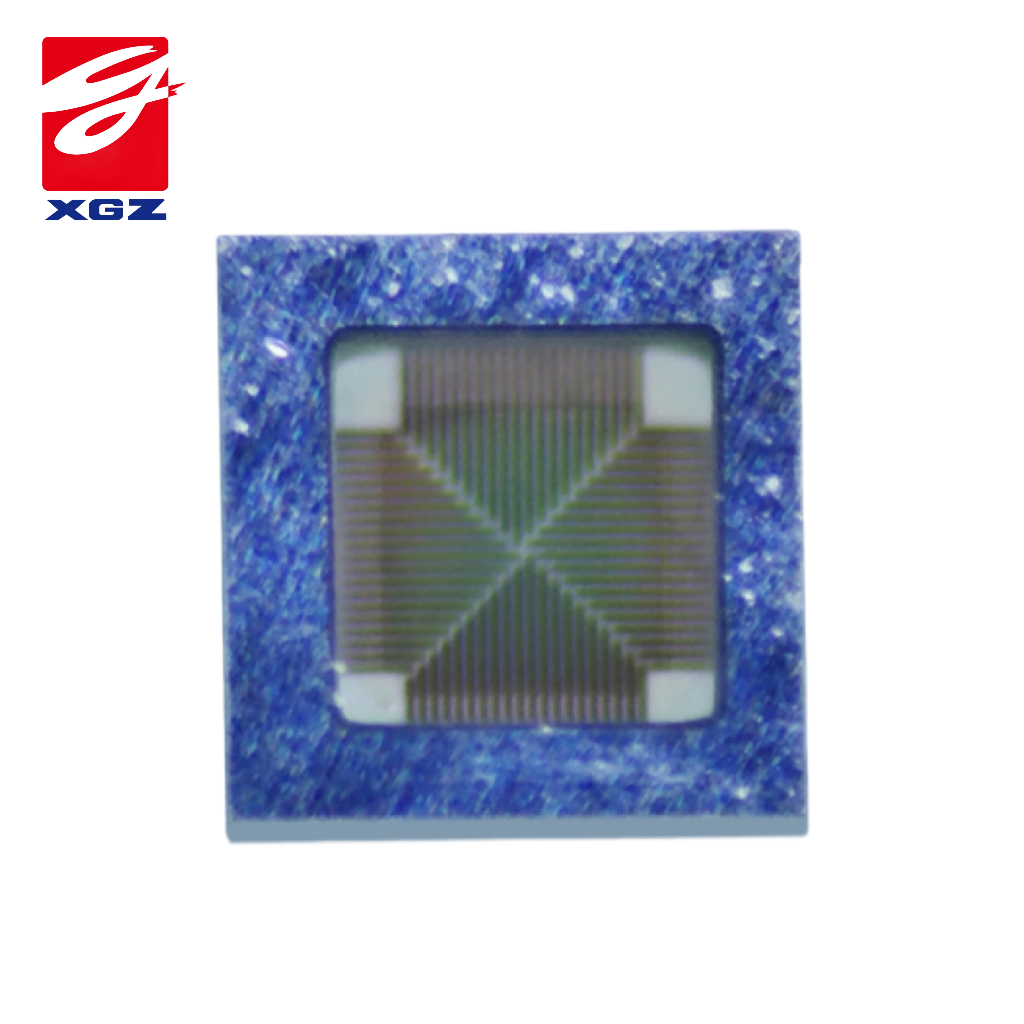

GDT1104: IR Thermopile Sensor Die for Non-Contact Temperature Measurement,-20～100℃
Description
Product Description
GDT1104AQ: Silicon Piezoresistive Sensor (Absolute Type）
| Sensor Attribute | Attribute Value |
| Product Category | IR Thermopile Sensor Die |
| Product Series | GDT1104 |
| Chip Type | Thermal Infrared Sensor |
| Measured Range | -20～100℃ |
| Output Type | Analog mV output |
| Response Rate | 87V/W(500K 5.55μm Optical Filter) |
| Detection Rate | 1.1E08cmHz1/2 / W (500K, 1Hz) |
| Thermopile Resistance | 129±30KΩ(25℃) |
| NTC Resistance | 100±1%KΩ(25℃) |
| Power Supply | None |
| Die Size(L*W*H) | 1.1×1.1×0.4mm(including Scribe Line 100μm) |
| Sensing Area Size | 0.76×0.76mm |
| QTY/Wafer | 13448pcs/6”Wafer |
