Description
Product Description

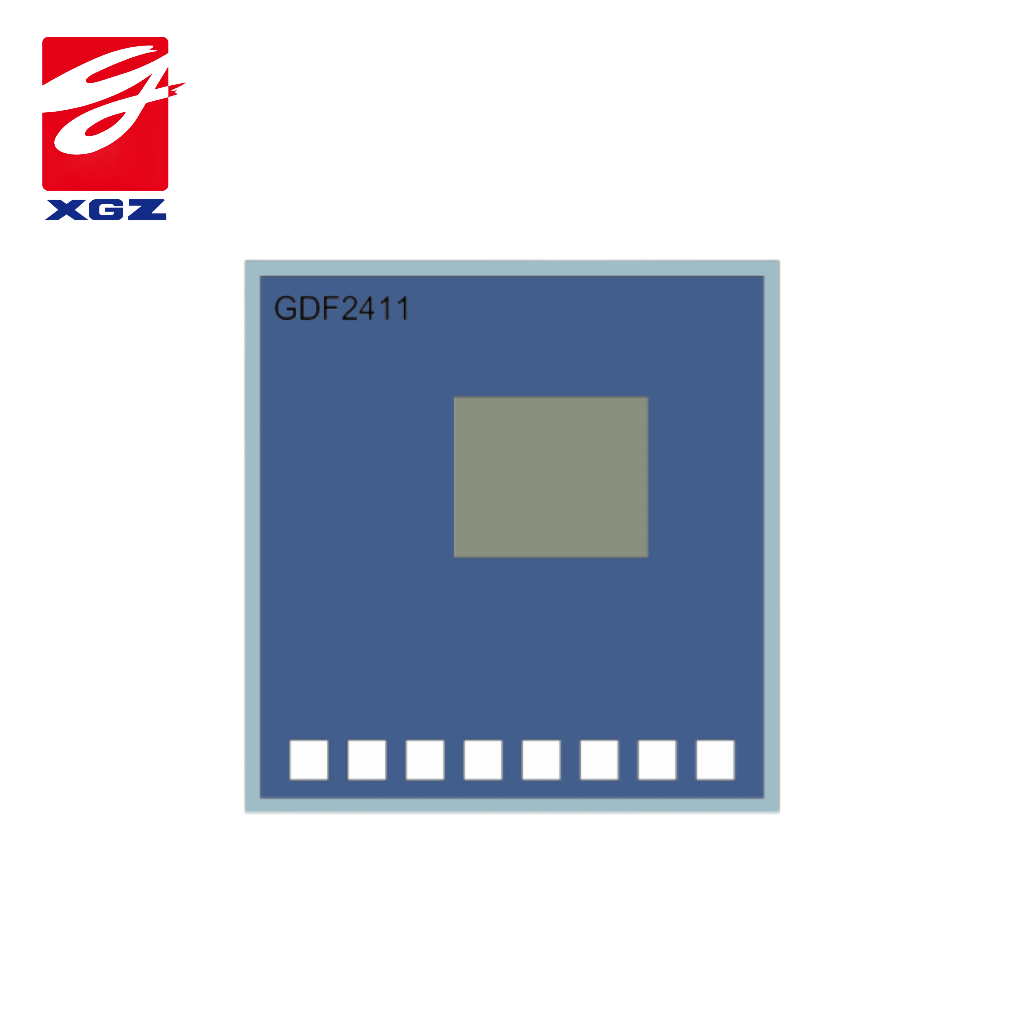

GDP2411: Mass Flow Sensor (Analog mV output）
| Sensor Attribute | Attribute Value |
| Product Category | Gas Flow Sensor Die |
| Product Series | GDF2411 |
| Chip Type | Mass Flow Sensor |
| Flow Range | 0～1SCCM ～2000SLM |
| Output Type | Analog mV output |
| Zero Flow Output | 0.75～0.81V (5Vdc Power Supply&20°C) |
| Zero Flow Differential Output | -40～40mV (5Vdc Power Supply&20°C) |
| Thermopile Resistance | 25～35KΩ (20°C) |
| Heater Resistance | 180～220Ω (20°C) |
| Power Supply | ≥3Vdc(Typical 5Vdc) |
| Operating Temperature | -40 to 125°C |
| Working Pressure | 12Bar(Typical Value) |
| Die Size(L*W*H) | 1.38×1.38×0.4mm(including Scribe Line 80μm) |
| QTY/Wafer | 8400pcs/6”Wafer |
