GDP2004GQ: Automotive Grade Pressure Sensor Wafer, Series for Automobiles Gauge Pressure
Description
Product Description

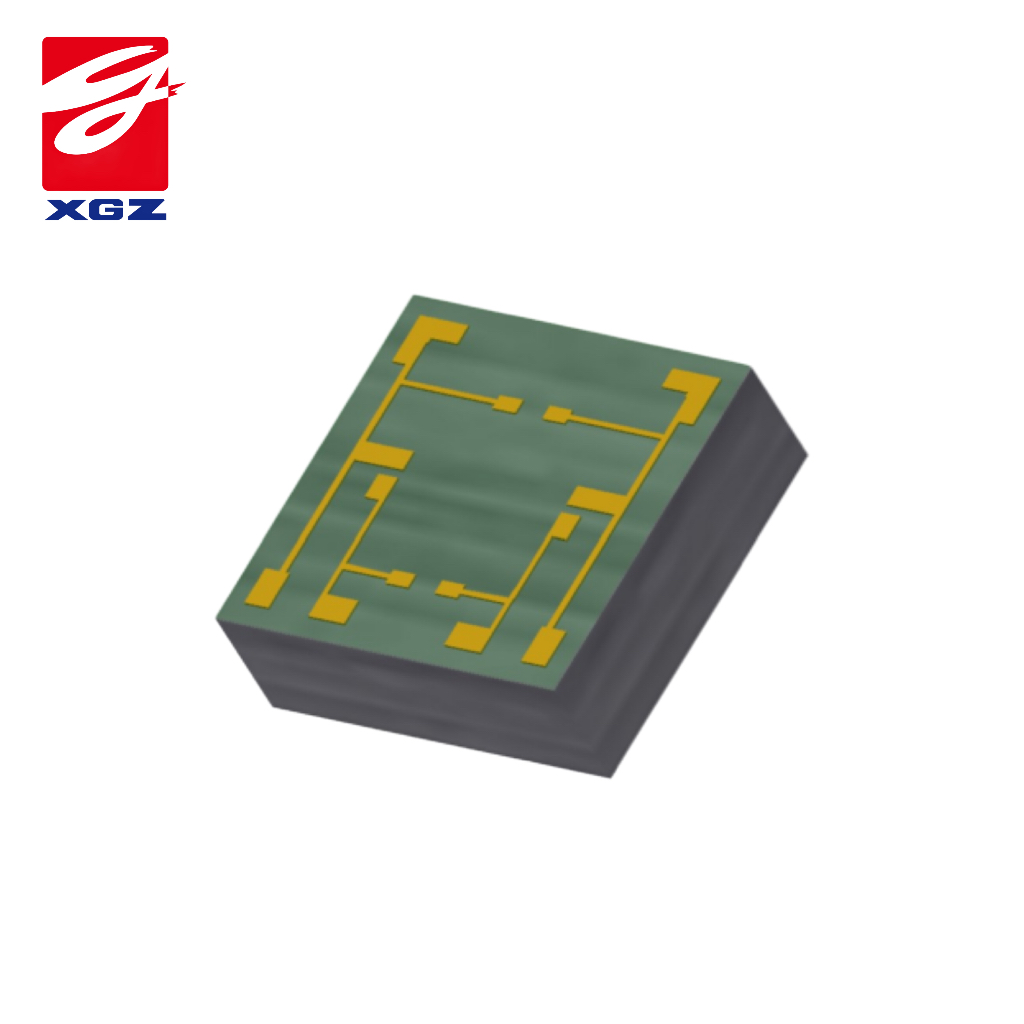

GDP2004GQ: Silicon Piezoresistive Sensor (Gauge Type）
| Sensor Attribute | Attribute Value |
| Product Category | Pressure Sensor Die(AEC-Q103 qualified) |
| Product Series | GDP2004GQ(Automotive Grade) |
| Chip Type | Silicon Piezoresistive Sensor(Gauge Type) |
| Pressure Range | 3/10kPa |
| Output Type | Analog mV output |
| Offset Output Value | -20～20mV |
| FS Output Value | 50～120mV |
| Bridge Resistance | -4 to 6KΩ |
| Power Supply | ≤15V or ≤3mA |
| Operating Temperature | -45 to 150°C |
| Die Size(L*W*H) | 1.8×1.8×0.4mm(including Scribe Line 80μm) |
| QTY/Wafer | 7500pcs/8”Wafer |
