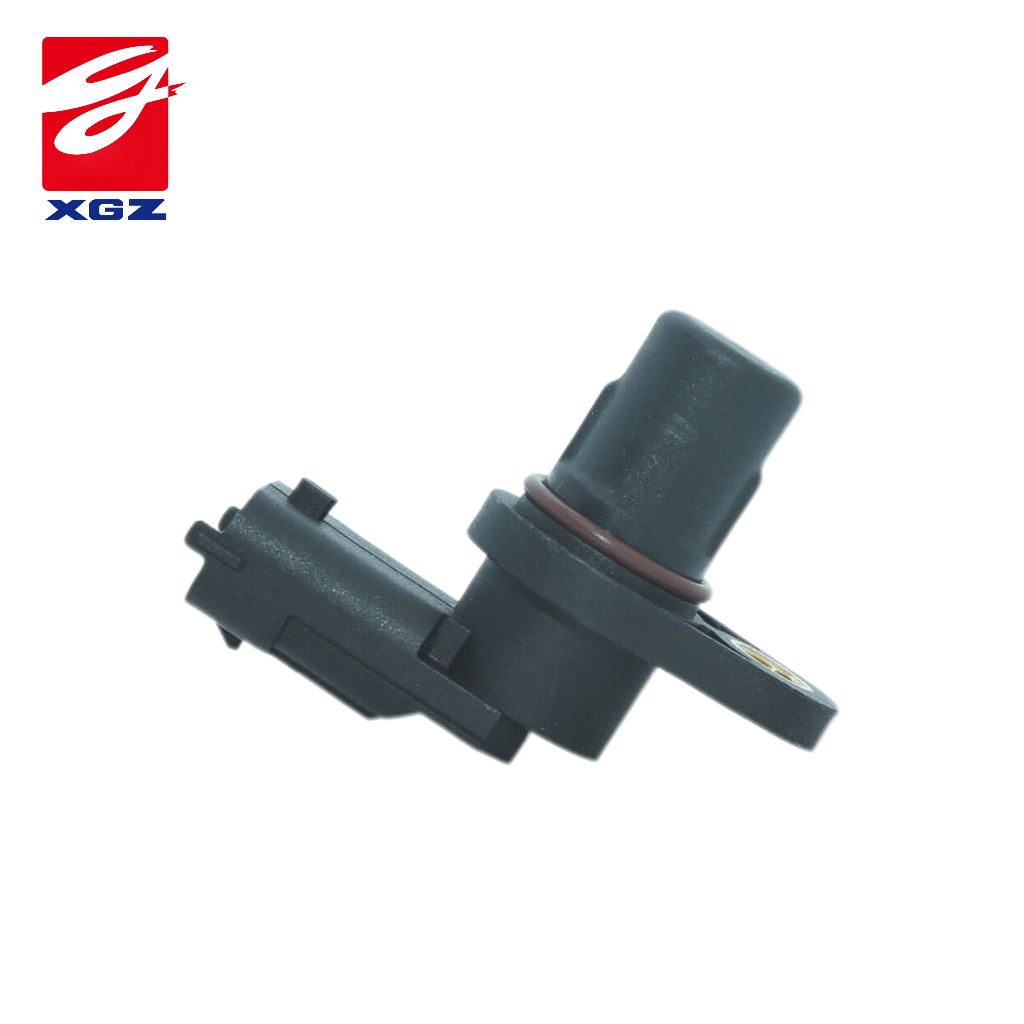

GZR6192D:Camshaft Sensor, All-in-one Injection Moulded High-precision Sensor
- High-precision speed sensor
- High stability
- Integrated injection molding structural solution
Utilizing imported Hall effect chips from renowned brands ensures high output accuracy and reliability. Using samarium cobalt magnets provides a constant back magnet, guaranteeing both performance and high stability. The integrated injection molding design reduces the number of parts and shortens the manufacturing process, lowering material and production costs.
Description
GZR6192D: Magneto-electric
| Sensor Attribute | Attribute Value |
| Product Category | Camshaft Phase Sensor |
| Product Series | GZR6192D |
| Sensor Type | Hall |
| Working Frequency | 0～5KHz |
| Power Supply Type | 4.75～5.25V |
| Output Low Level | ≤0.8V |
| Output High Level | ≥4.5V |
| Operating Temperature | -40 to 150°C |
| Manufacture Technics | Injection Molding |
| Electrical Port | AMP 2050049-1 or BOSCH A 928 000 453 |
| Protection level | IP69K |
| More Characteristics | Overvoltage:24V and Reverse voltage -18V |
| Cycle Life | ＞ 1 Million |
| Application | OEM-fitted Automotive application |
Product Description
The GZR6192 is a mature and reliable Hall effect speed sensor launched by Sencoch for the automotive market. The product mainly consists of a Hall effect chip, a permanent magnet, electronic circuitry, and external encapsulation. It outputs a square wave signal based on the detected camshaft and crankshaft rotation speed for acquisition and processing by the ECU . The product features a simple structure and good performance consistency.
APPLICATIONS & DIMENSION
Applications
The products are mainly targeted at the commercial vehicle and passenger vehicle markets, and are used in engine power systems to measure the speed and position of engine camshafts and crankshafts, as well as the speed in transmissions and the ABS wheel speed in braking systems.
Dimension
More information about GZP6192D, refer to Datasheet or contact Sencoch
