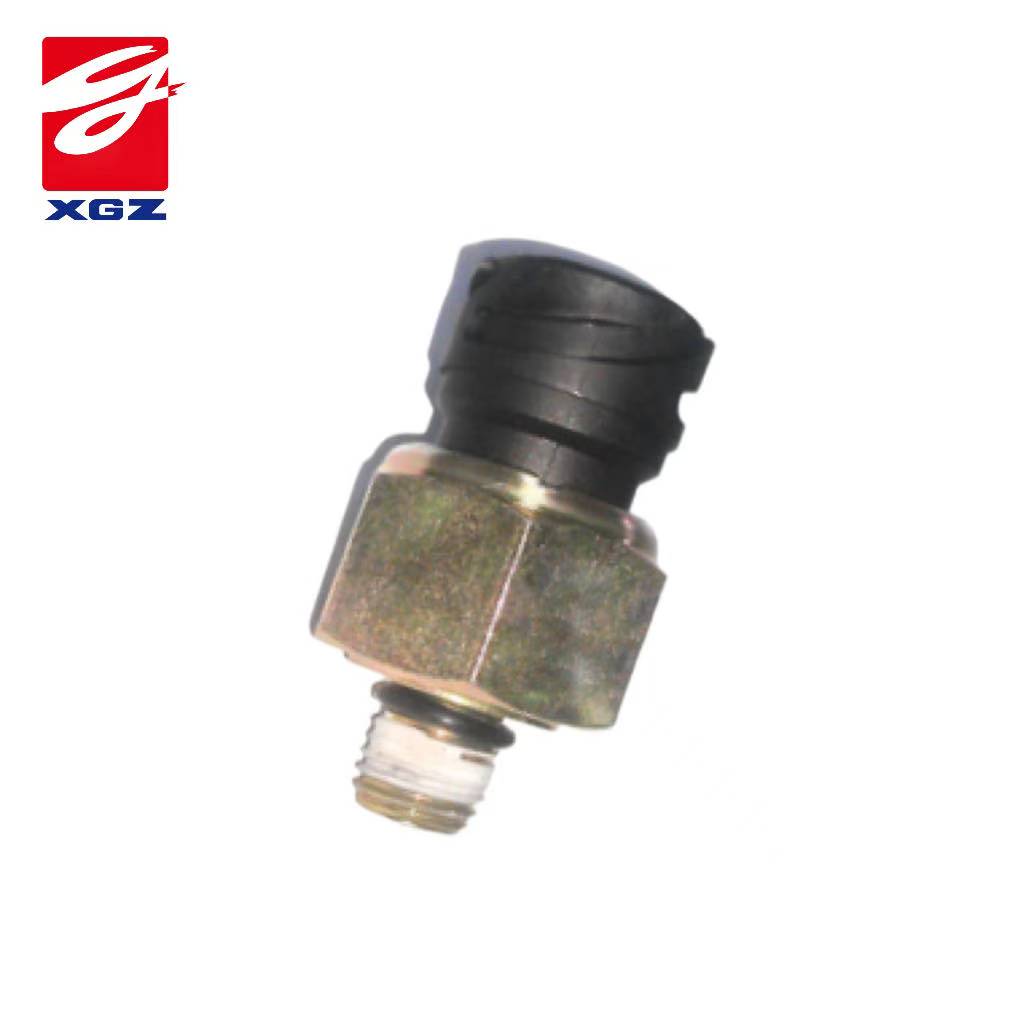

GZP6183A-AS: Absolute Pressure

Sensor Attribute	Attribute Value
Product Category	Pressure Transducer
Product Series	GZP6183A-AS
Pressure Type	Absolute Pressure
Pressure Range	0.1～1.1/1.5MPa(Customized range)
Power Supply Type	5±0.25Vdc
Output Value	0.5～4.5V(fixed or ratiometric voltage output )
Accuracy	±1%FSS@0～60°C
Operating Temperature	-40 to 125°C
Housing Material	Stainless Steel
Electrical Port	Adapt to AMP 1-9689968-2
Pressure Port	M221.5 or M161.5 or M12*1.5
Protection level	IP67
Cycle Life	＞ 1 Million
Application	Aftermarket Automotive application

Product Description

The GZP6183(Air Brake series) is a pressure sensor product developed by Sencoch for the automotive aftermarket applications.The product packaging adopt MEMS piezoresistive diaphragm core. The measured pressure work on the silicon diaphragm and then generate a voltage signal, where the signal is processed by an automotive-grade signal conditioning chip(ASIC). The ASIC performs calibration and compensation for raw signal and convert pressure signals into standard analog output signals (range and output is customizable). The GZP6183 pressure transducer has the advantages of fast response, high reliability and good stability, and is a high cost-effective sensor product.

Function Description

The working principle of GZP6183A is based on the piezoresistive effect of silicon chip. The measured medium acts on the silicon oil and transmit to MEMS silicon diaphragm through the pressure interface (such as a threaded connection) and cause it to deform. The Wheatstone bridge on the back of the diaphragm converts the deformation into a weak differential voltage signal. The built-in dedicated signal conditioning circuit (ASIC) then amplifies, temperature-compensates, linearizes, and zero-adjusts this signal, ultimately outputting a high-precision, high-stability standard analog signal (e.g., 0.5-4.5V).
