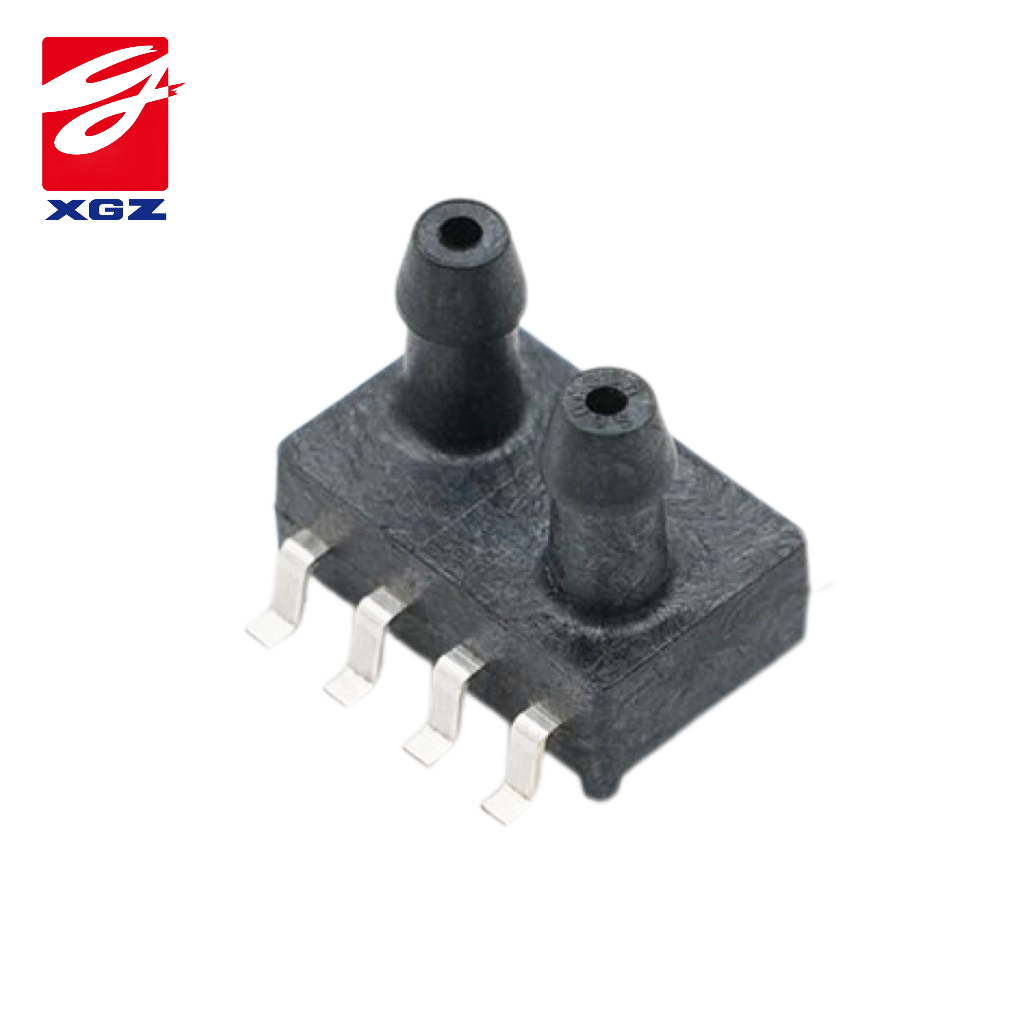

GZP6897D: Differential Pressure Sensor, Gauge Pressure Type

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6897D
Pressure Type	Differential Pressure
Pressure Range	-100…0～0.5…200kPa (Multiple range)
Output Type	Digital
Interface	I2C
Accuracy	±1%FSS
Supply Voltage	3.0 to 5.5Vdc
Temperature Compensated	0～60°C
Operating Temperature	-30 to 105°C
Mounting Style	SMD/SMT or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	Tube/45pcs

Product Description

The GZP6897DC pressure sensor is a state-of-the-art MEMS pressure sensor designed for a wide applications in medical&health care, industry&automation, household appliances and consumer electronics with specific pressure range. It is composed of a silicon piezoresistive pressure sensing chip and a signal conditioning integrated circuit. The initial signal from the sensing chip is amplified, temperature compensated, calibrated and finally converted to a digital signal(I2C) that is corresponding to the applied pressure.

Function Description

This product is manufactured using advanced micro-electromechanical principles. Its core technologies are a MEMS pressure sensor chip based on the silicon piezoresistive effect and a high-performance signal conditioning AISC chip. The silicon micro-piezoresistive MEMS pressure sensor chip forms a Wheatstone bridge through four strain-sensitive resistors. The output signal is amplified, temperature-compensated, and linearized by the ASIC chip. The linearization and temperature compensation of the transfer function are implemented by the digital processing circuit in the ASIC. Through the polynomial compensation algorithm and multi-point pressure calibration technology at multiple temperatures, high-precision pressure measurement is achieved over the entire operating temperature range.

Applications

Ventilators, spirometers, negative pressure wound therapy, blood pressure monitoring, sleep apnea treatment, etc. - these are all components of the medical field.

Air flow measurement, heating ventilation and air conditioning, pneumatic equipment, pressure switches, etc. - these are all components found in the industrial sector.

Biological science, small household appliances, consumer electronics, sports and fitness equipment, fire-fighting equipment, Internet of Things, etc.

Gas flow meters, gas emissions, variable air volume control, etc.
