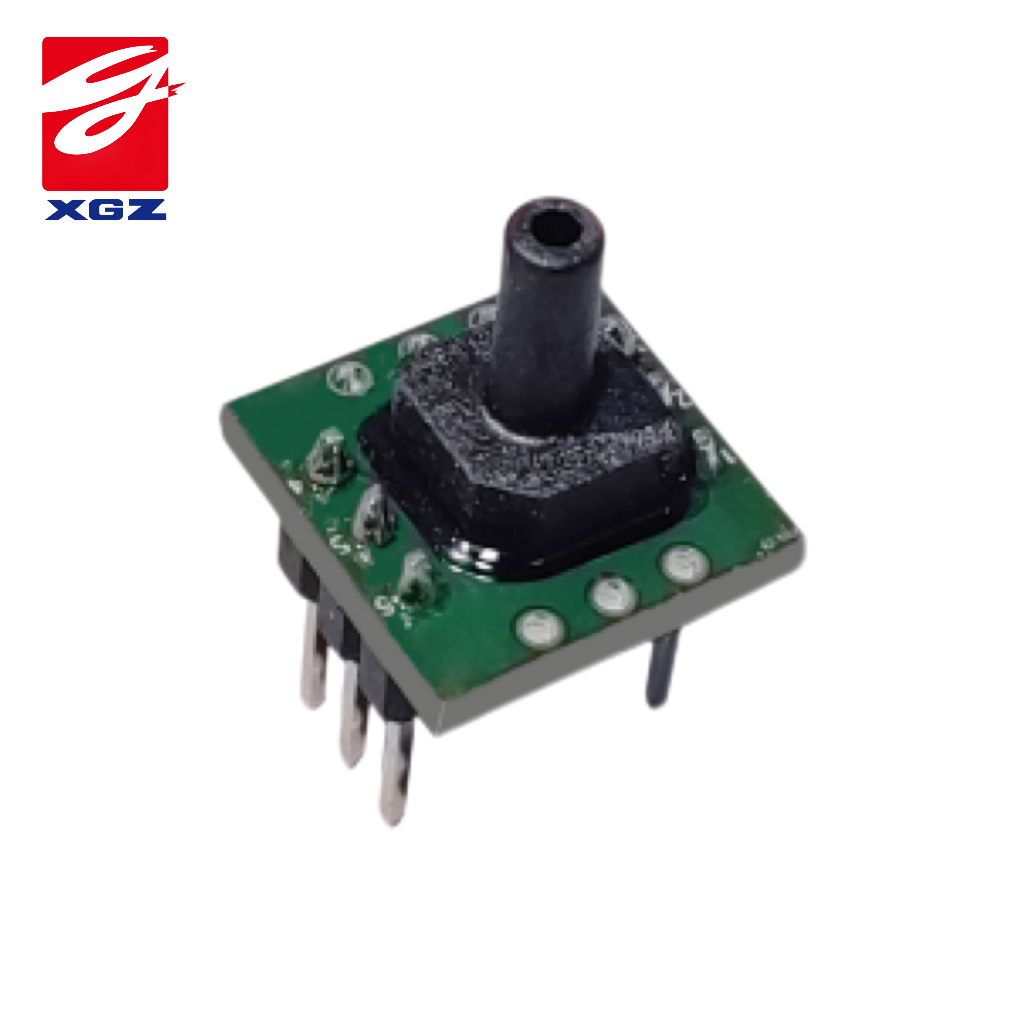

GZP6848D: Absolute Pressure Type

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6848D
Pressure Type	Absolute Pressure
Pressure Range	0 to 1400kPa (Multiple range)
Output Type	Digital
Interface	I2C
Accuracy	±1%FSS
Supply Voltage	2.5 to 5.5Vdc
Temperature Compensated	0～60°C
Operating Temperature	-30 to 105°C
Mounting Style	THT or Manual Solder
Measured Media	Non-corrosive gases or liquid
Package/SPQ	Tube/38pcs

Product Description

The GZP6848D pressure sensor is a custom MEMS pressure sensor designed particularly for a wide applications with various pressure range. It is composed of a silicon piezoresistive pressure sensing chip and a signal conditioning integrated circuit. The initial signal from the sensing chip is amplified, temperature compensated, calibrated and finally converted to a digital signal(I2C) that is corresponding to the applied pressure.

Function Description

This product is manufactured using advanced micro-electromechanical principles. Its core technologies are a MEMS pressure sensor chip based on the silicon piezoresistive effect and a high-performance signal conditioning AISC chip. The silicon micro-piezoresistive MEMS pressure sensor chip forms a Wheatstone bridge through four strain-sensitive resistors. The output signal is amplified, temperature-compensated, and linearized by the ASIC chip. The linearization and temperature compensation of the transfer function are implemented by the digital processing circuit in the ASIC. Through the polynomial compensation algorithm and multi-point pressure calibration technology at multiple temperatures, high-precision pressure measurement is achieved over the entire operating temperature range.
