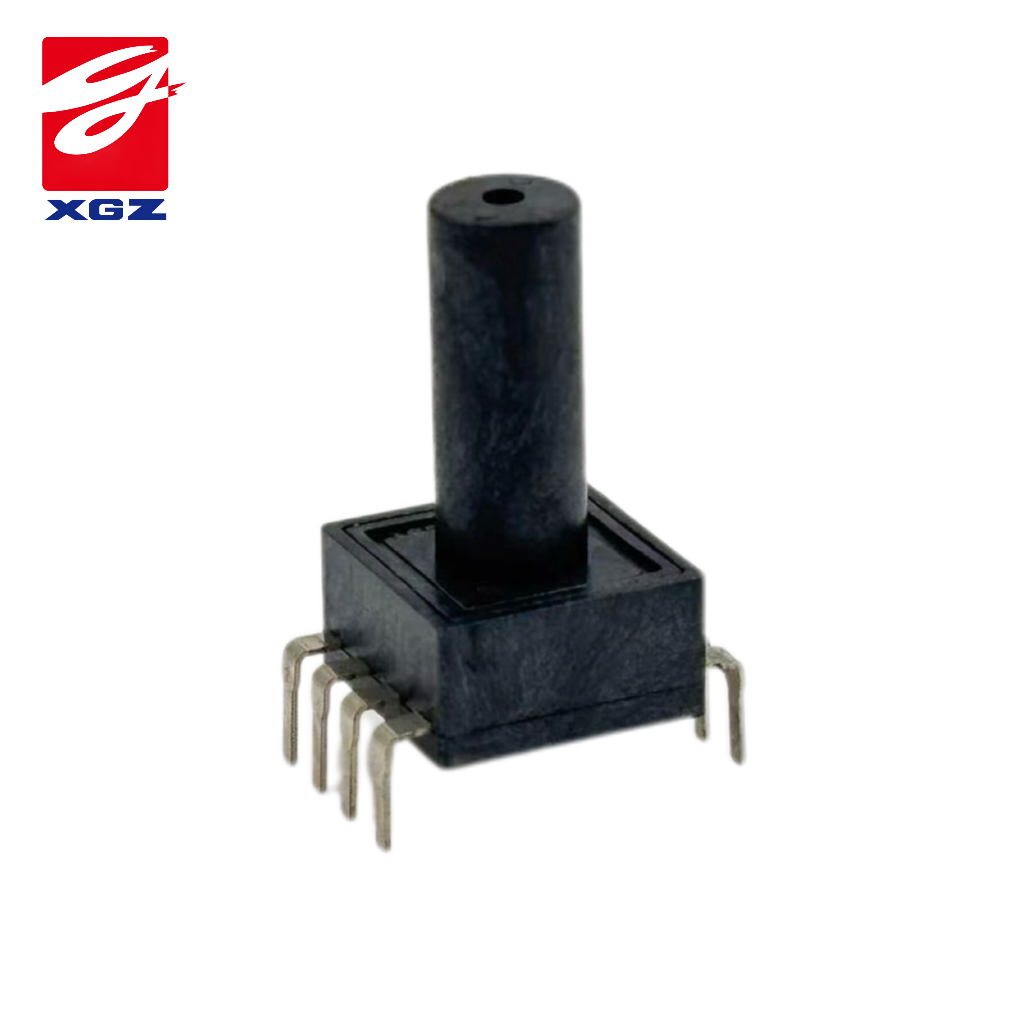

GZP6841DC: Differential Pressure Sensor, Gauge Pressure Type

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6841D
Pressure Type	Gauge Pressure
Pressure Range	0～6kPa (Multiple range)
Output Type	Digital
Interface	I2C
Accuracy	±1%FSS
Supply Voltage	3.0 to 5.5Vdc
Temperature Compensated	0～60°C
Operating Temperature	-20 to 80°C
Mounting Style	THT or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	Tube/47pcs

Product Description

The GZP6841DC pressure sensor is a state-of-the-art MEMS pressure sensor designed particularly for the water level measurement in household appliances applications with specific pressure range. It is composed of a silicon piezoresistive pressure sensing chip and a signal conditioning integrated circuit. The initial signal from the sensing chip is amplified, temperature compensated, calibrated and finally converted to a digital signal(I2C) that is corresponding to the applied pressure.

Function Description

This product is made with advanced micro-electromechanical principles. The crucial technology is the MEMS pressure sensor chip based on the silicon piezoresistive effect and the high-performance signal conditioning AISC chip. The silicon micro-piezoresistive MEMS pressure sensor chip is connected to a Wheatstone bridge composed of four strain-sensitive resistors. The output signal is amplified, temperature compensated and linearized by the ASIC chip. The linearity and temperature compensation of the transfer function are realized by the digital processing circuit in the ASIC. The high-precision pressure measurement in the full operating temperature range is achieved through the polynomial compensation algorithm and multi-point pressure calibration technology at multiple temperatures.
