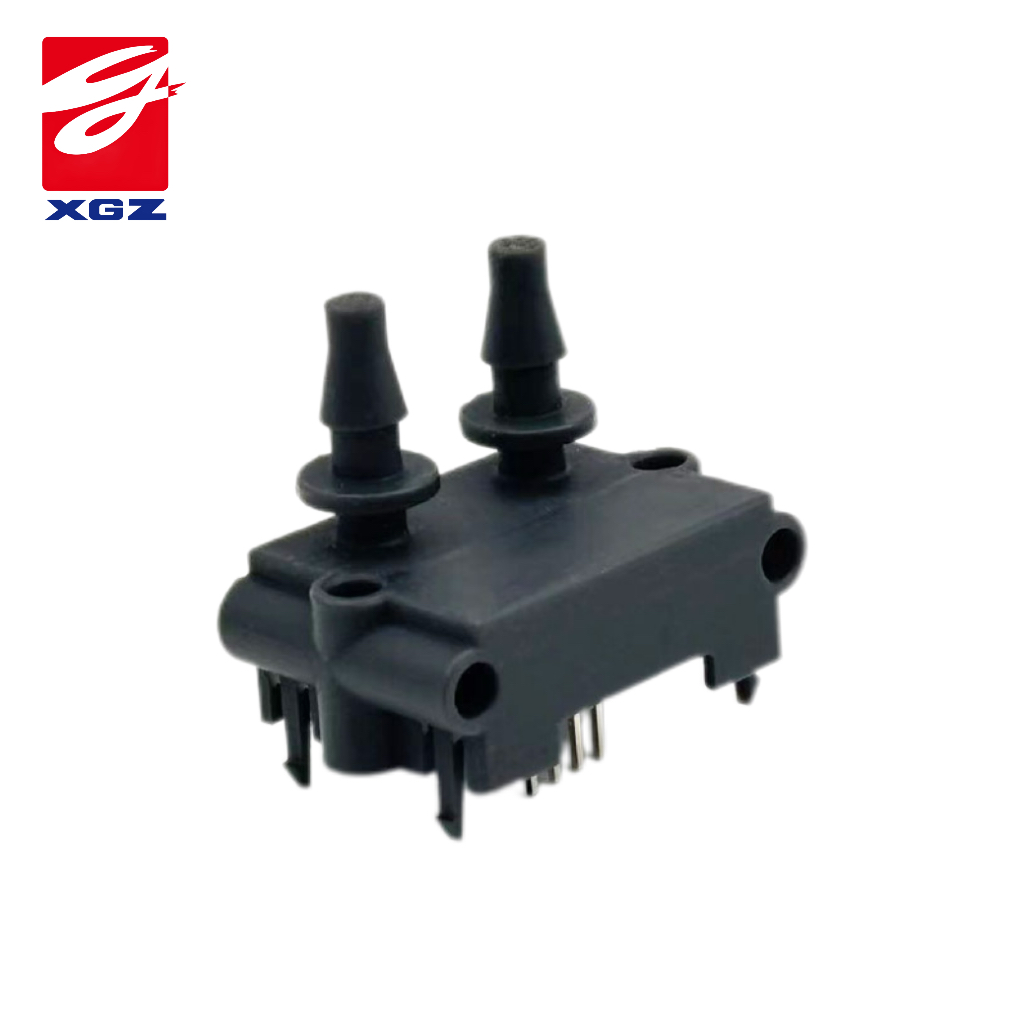

GZP6810D: Differential Pressure Sensor, Gauge Pressure Type

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6810D
Pressure Type	Differential Pressure
Pressure Range	±500Pa
Output Type	Digital
Interface	I2C
Accuracy	Max 3% Reading
Supply Voltage	3.0 to 5.5Vdc
Temperature Compensated	0～50°C
Operating Temperature	-20 to 65°C
Mounting Style	THT or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	/

Function Description

The GZP6810 sensor series is a series of digital differential pressure sensors from Sencoch, designed specifically for high-precision micro- differential pressure applications. The sensor measures the pressure of air and non-corrosive gases with extremely high accuracy , capable of measuring very small pressures , and exhibits excellent measurement accuracy and zero drift. The GZP6810 series features a digital two-wire I2C interface for easy connection to microprocessors.

The sensor’s superior performance is based on Sencoch’s patented sensor technology. Differential pressure is measured by a thermal sensor element that measures the gas flowing through it. The proven technology is well-suited for high-quality mass production and is ideal for demanding and cost-sensitive OEM applications.

Applications

Portable ventilators, small household oxygen generators

Continuous Positive Airway Pressure (CPAP) equipment

Anesthesia delivery during labor

Intensive care equipment

Filter monitoring

Residual pressure monitoring system for fire protection

Medical breathing apparatus

HVAC (Heating, Ventilation, and Air Conditioning) system
