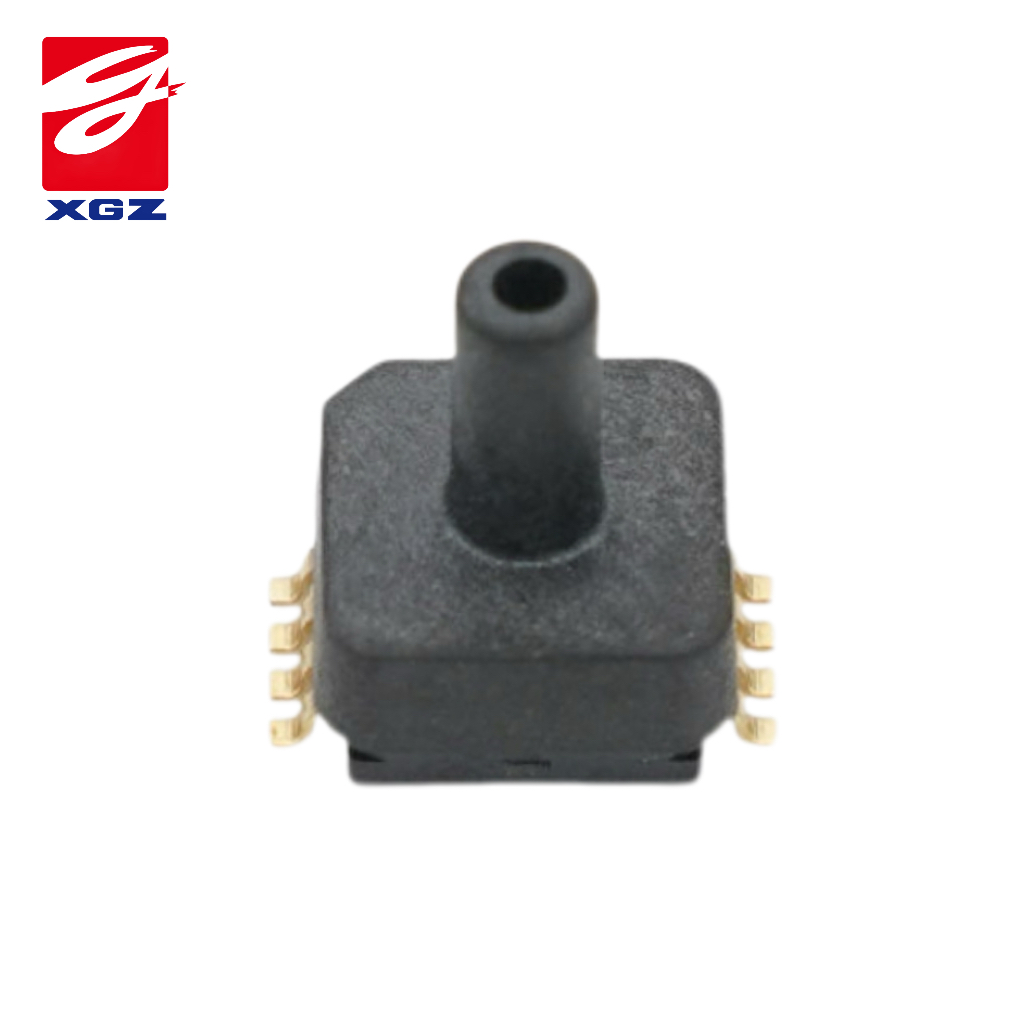

GZP183：Gauge Pressure Type, Analog mV Output

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP183
Pressure Type	Gauge Pressure (Postive and Negative Pressure)
Pressure Range	10/40/100/200kPa
Output Type	Analog mV output(Non-calibrated&Non-compensated)
Offset Output Value	10～10mV
FS Output Value	Based on pressure range
Bridge Resistance	-4 to 6KΩ
Power Supply	≤15V or ≤3mA
Operating Temperature	-30 to 105°C
Mounting Style	SMT or Manual Soldering
Measured Media	Non-corrosive gases or liquid
Package/SPQ	Tube/105pcs

Product Description

The GZP183 pressure sensor is a state-of-the-art MEMS pressure sensor designed for a wide applications in medical&health care,industry&automation, household appliances and consumer electronics with specific pressure range. It is composed of a silicon piezoresistive pressure sensing chip and a signal conditioning integrated circuit. The initial signal from the sensing chip is amplified, temperature compensated, calibrated and finally converted to a digital signal(I2C) that is corresponding to the applied pressure.

Function Description

The GZP183 pressure sensor is suitable for applications in medical and healthy care, automotive electronics, industry automation and other fields. Its key component is a silicon piezoresistive pressure sensor manufactured using MEMS technology . This pressure sensor consists of an elastic membrane and four resistors integrated into the membrane. These four piezoresistors form a Wheatstone bridge structure. When pressure acts on the membrane, the bridge generates a voltage output signal that is linearly proportional to the applied pressure.
