GZP160: Gauge Pressure Type, Analog mV Output

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP160
Pressure Type	Gauge Pressure (Postive and Negative Pressure)
Pressure Range	10/40/100/200/700kPa
Output Type	Analog mV Output(Non-calibrated&Non-compensated)
Offset Output Value	10～10mV
FS Output Value	Based on pressure range
Bridge Resistance	-4 to 6KΩ
Power Supply	≤15V or ≤3mA
Operating Temperature	-30 to 105°C
Mounting Style	SMT(SOP Type) and THT(DIP Type) or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	Tube/70pcs or Tape/400pcs(SOP) and Tube/58pcs(DIP)

Product Description

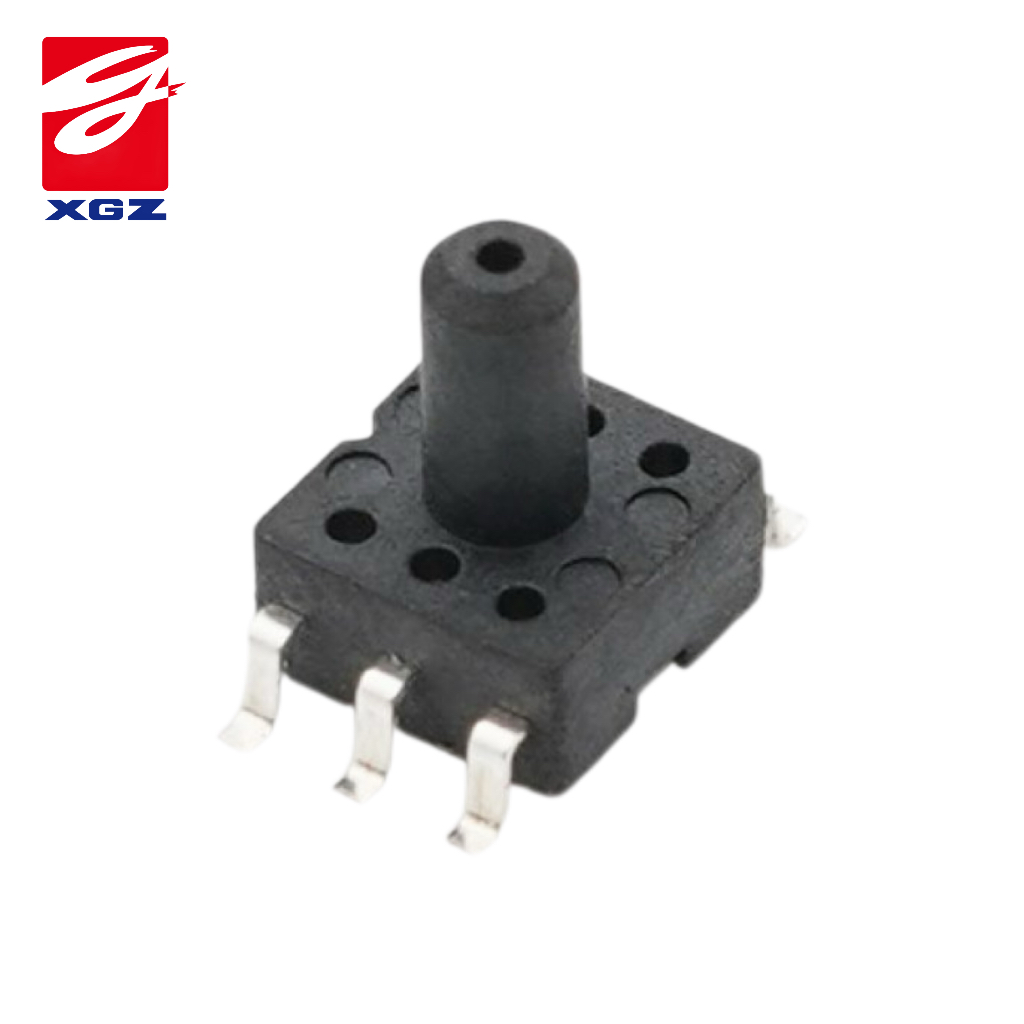

The GZP160 series pressure sensor features a MEMS silicon solid-state sensor packaged in a 6-pin dual in-line package or 6-pin(SO6) SMT package. All parts in this series are uncompensated high-performance die mounted on a substrate with a plastic cap. Pins are designed for board moutned assembly. The GZP160 is ideal for applications requiring low hysteresis, high reliability and stability.With constant voltage excitation or constant current excitation, the GZP160 produces a voltage output that is linearly proportional to the input pressure. The user can add on external signal conditioning circuitry to amplify the output signal and maximize its performance. The GZP160 is compatible with most non-corrosive gases including air.

Function Description

The GZP160 pressure sensor is suitable for applications in medical and healthy care, automotive electronics, industry automation and other fields. Its key component is a silicon piezoresistive pressure sensor manufactured using MEMS technology . This pressure sensor consists of an elastic membrane and four resistors integrated into the membrane. These four piezoresistors form a Wheatstone bridge structure. When pressure acts on the membrane, the bridge generates a voltage output signal that is linearly proportional to the applied pressure.

Applications

Electronic blood pressure monitors, ventilators, oxygen concentrators, monitors and other medical fields

Negative pressure measurement, pressure instruments, pneumatic components and other fields

Massagers, massage chairs, air mattresses and other sports and fitness equipment

Vacuum packaging machine, vacuum mixer, vacuum wall breaker, vacuum fresh-keeping box, vacuum pump and other vacuum negative pressure fields

Washing machines, beer machines, coffee machines, vacuum cleaners, water purifiers, water heaters and other home appliances
